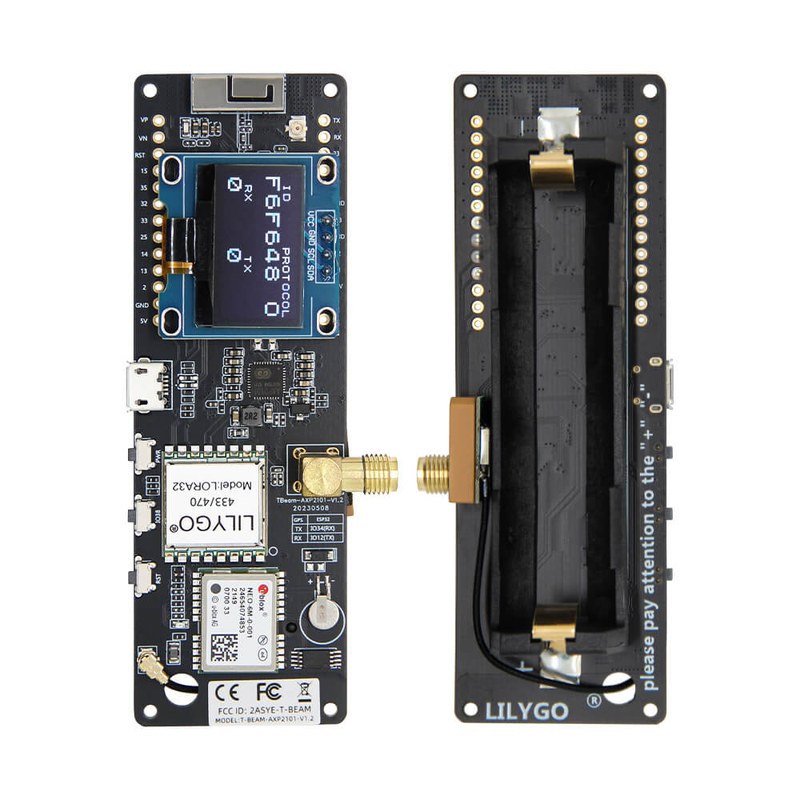

LILYGO T-Beam Meshtastic Node (SX1262 + GPS)
A LILYGO T-Beam with LoRa SX1262 and GPS onboard — a ready Meshtastic mesh node and tracker that runs for days untethered.
| Price | A$78.99 A$78.99 · US$51.97 · 51.97 USDC |
|---|---|
| Payment | AUD card/bank · USDC (Base) · Monero |
Compliance: shipped as general-purpose electronics; radio/EMC regulatory status documented per SKU (AU/NZ/US/UK/EU).
About this accessory
Meshtastic turns cheap LoRa hardware into an encrypted, infrastructure-free mesh, and the T-Beam is the community's reference node: an ESP32 with a SX1262 LoRa transceiver, an onboard u-blox GNSS receiver, and battery management in one finished board. Load the official Meshtastic firmware and it joins the mesh immediately — long-range text messaging, location sharing and telemetry between nodes with no cellular or WiFi involved, which is exactly what field operations, expeditions and off-grid events need. The GPS also makes it a genuine tracker: position broadcasts across the mesh or logs locally. This is the 868/915 MHz variant appropriate for AU use. Pair two or more and you have a working mesh the same afternoon.
Features
- Genuine LILYGO T-Beam: ESP32 + SX1262 LoRa + u-blox GNSS in one board
- Runs official Meshtastic firmware — joins an encrypted off-grid mesh out of the box
- Onboard GPS enables real tracking and location broadcast across the mesh
- 868/915 MHz variant suited to Australian use; battery management onboard
Specs
| MCU | ESP32 |
|---|---|
| LoRa | SX1262 (868/915 MHz) |
| GNSS | u-blox NEO-6M class |
| Power | 18650 battery support, USB-C charge |
| Regulatory | built on pre-certified RF modules (FCC/CE module grants); RCM/EESS compliance folder maintained for AU/NZ sale. |
In the box
- LILYGO T-Beam (SX1262 + GPS)
- 18650 battery holder fitted (battery not included due to shipping rules)
- LoRa antenna
In stock — ships fast
