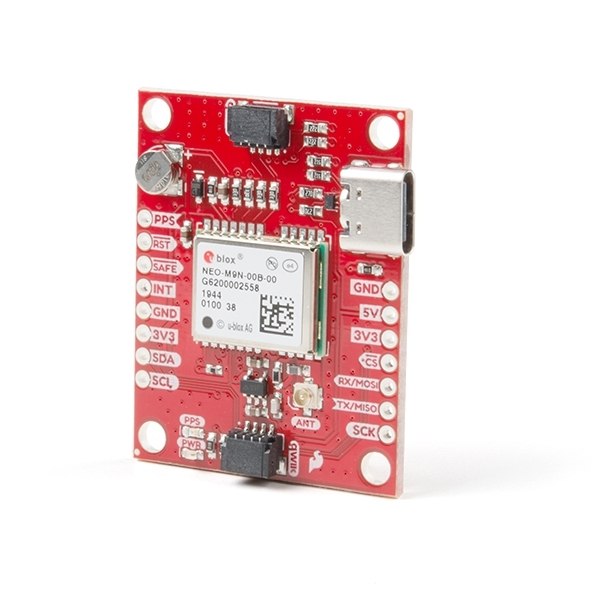

SparkFun NEO-M9N GNSS Breakout (U.FL, Qwiic)
SparkFun’s premium NEO-M9N breakout: four-constellation GNSS at ~1.5 m, jamming/spoofing detection, Qwiic plug-in — the RTK-lite surveying receiver.
| Price | A$168.99 A$168.99 · US$111.18 · 111.18 USDC |
|---|---|
| Payment | AUD card/bank · USDC (Base) · Monero |
Compliance: shipped as general-purpose electronics; radio/EMC regulatory status documented per SKU (AU/NZ/US/UK/EU).
About this accessory
When a wardriving dongle is not enough, SparkFun's NEO-M9N breakout is the step up: a 92-channel u-blox M9 engine concurrently tracking GPS, GLONASS, Galileo and BeiDou for ~1.5 m accuracy even in urban canyons, with a 25 Hz max update rate and hot fixes in ~2 seconds thanks to the onboard rechargeable backup battery. The M9 engine detects and reports jamming and spoofing events to your host — rare, honest signal-integrity telemetry in a hobby-grade receiver — and its integrated SAW filter + LNA hold accuracy near co-located cellular modems. Qwiic I2C means no soldering; a U.FL connector takes the external antenna of your choice; NMEA, UBX and RTCM all supported.
Features
- 92-channel u-blox NEO-M9N — 4 concurrent GNSS constellations
- ~1.5 m accuracy, 25 Hz max update rate
- Jamming and spoofing detection with host reporting
- SAW filter + LNA for operation near strong RF
- Qwiic I2C + U.FL antenna connector + breadboard pins
Specs
| Receiver | u-blox NEO-M9N (92-channel M9 engine) |
|---|---|
| Constellations | GPS, GLONASS, Galileo, BeiDou (concurrent) |
| Accuracy | ~1.5 m horizontal; TTFF hot ~2 s / cold ~24 s |
| Interfaces | I2C/Qwiic (0x42), UART, USB power/serial |
| Logic | 3.3 V VCC and I/O |
| Protocols | NMEA, UBX, RTCM |
In the box
- SparkFun NEO-M9N breakout (U.FL, Qwiic)
In stock — ships in 7-14 business days
