PN532 NFC Kit
The standard PN532 controller module for reading and writing 13.56 MHz NFC/RFID tags from any microcontroller project.
| Price | A$36.48 A$36.48 · US$24.00 · 24.00 USDC |
|---|---|
| Payment | AUD card/bank · USDC (Base) · Monero |
Compliance: shipped as general-purpose electronics; radio/EMC regulatory status documented per SKU (AU/NZ/US/UK/EU).
About this accessory
The PN532 is NXP's widely supported NFC controller, and this kit is the module most projects are written against. It reads and writes 13.56 MHz tags — MIFARE Classic/ Ultralight family, NTAG, and compatible ISO14443A targets — and supports the three common host interfaces: SPI, I2C, and UART, selectable on-board. It works directly with Arduino, ESP32, and Raspberry Pi, with mature libraries on every platform, which is why it is the default NFC module in the security-research and maker communities. If you are prototyping tag workflows, building your own reader rig, or adding NFC to a board that lacks it, this is the predictable, well-documented choice.
Features
- NXP PN532 controller — the most widely documented NFC module for hobby and research work
- Reads and writes 13.56 MHz ISO14443A tags (MIFARE, NTAG families)
- SPI, I2C and UART interfaces, jumper-selectable on board
- Drop-in support for Arduino, ESP32 and Raspberry Pi with mature libraries
- Breadboard-friendly breakout with pin headers
Specs
| Chip | NXP PN532 |
|---|---|
| Frequency | 13.56 MHz (ISO14443A) |
| Interfaces | SPI / I2C / UART (selectable) |
| Hosts | Arduino, ESP32, Raspberry Pi |

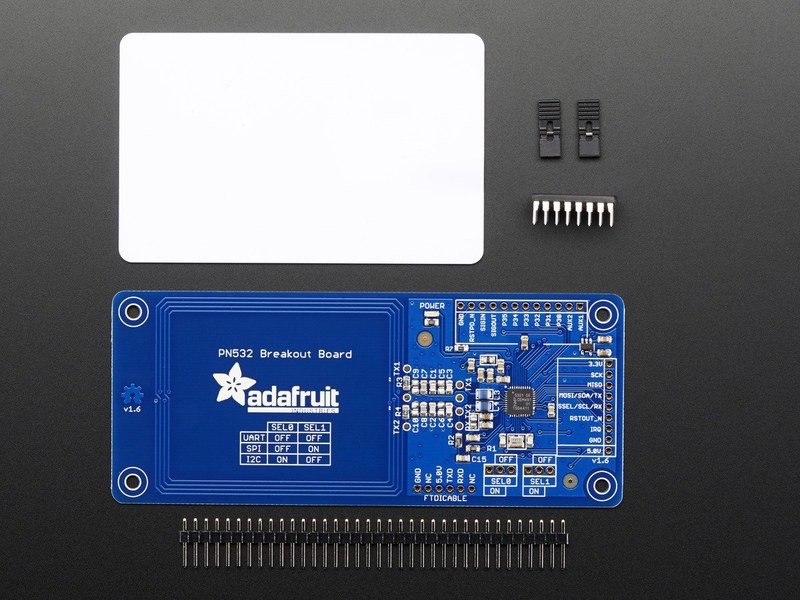

In the box
- PN532 NFC module breakout
- Pin headers
- Interface selection jumpers
In stock — ships fast
