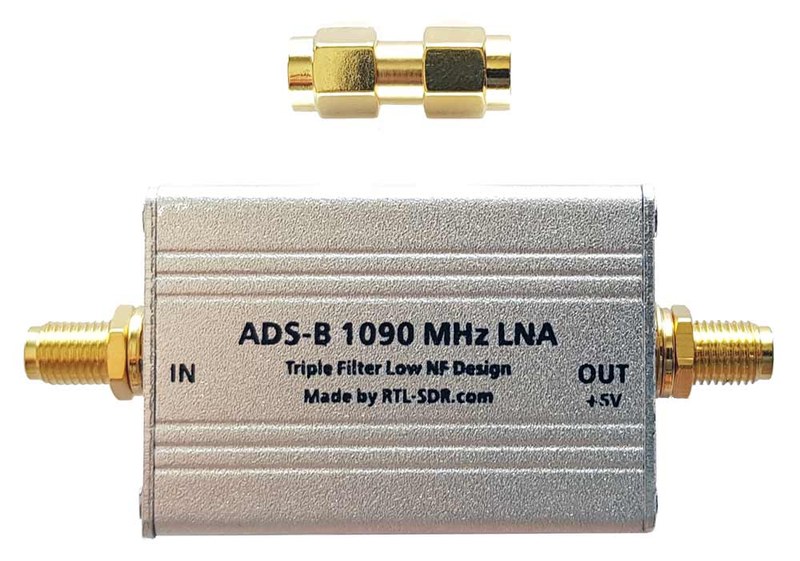

LNA + FM/ADS-B Filter Set
A low-noise amplifier and band-pass filter pair that clean up and boost SDR reception — the standard companion to any RTL-SDR dongle.
| Price | A$29.90 A$29.90 · US$19.67 · 19.67 USDC |
|---|---|
| Payment | AUD card/bank · USDC (Base) · Monero |
Compliance: shipped as general-purpose electronics; radio/EMC regulatory status documented per SKU (AU/NZ/US/UK/EU).
About this accessory
A bare RTL-SDR dongle hears a lot of noise with its signal. This set is the standard fix: a wideband low-noise amplifier (with bias-tee power, so the dongle feeds it over the coax) that lifts weak signals out of the noise floor, and a band-pass filter that rejects the strong out-of-band transmitters — FM broadcast, pagers, GSM — that otherwise overload the front end and scrub real reception. Two filter variants are included: an FM-band stop filter for general listening, and an ADS-B pass filter at 1090 MHz that sharpens aircraft tracking noticeably. Fit the filter inline before the dongle and the LNA at the antenna, and reception quality steps up across the board.
Features
- Wideband LNA with bias-tee power — powered over coax from the SDR dongle
- FM-band reject filter cleans up overloaded general reception
- 1090 MHz ADS-B pass filter sharpens aircraft tracking
- SMA connectors throughout — mates directly with the RTL-SDR V4 kit
Specs
| LNA gain | ~20 dB, bias-tee powered |
|---|---|
| Filters | FM band-reject + 1090 MHz band-pass |
| Connectors | SMA |
| Application | RTL-SDR and similar SDR receivers |
In the box
- Low-noise amplifier
- FM band-reject filter
- ADS-B 1090 MHz band-pass filter
In stock — ships fast
