NooElec Ham It Up v1.3 — HF Upconverter for RTL-SDR
Unlocks 0.5-30 MHz HF on any RTL-SDR: Ham It Up v1.3 upconverts shortwave, ham bands and aviation HF to a 125 MHz IF your dongle already receives.
| Price | A$109.00 A$109.00 · US$71.71 · 71.71 USDC |
|---|---|
| Payment | AUD card/bank · USDC (Base) · Monero |
Compliance: shipped as general-purpose electronics; radio/EMC regulatory status documented per SKU (AU/NZ/US/UK/EU).
About this accessory
Every RTL-SDR goes blind below about 24 MHz — exactly where the interesting spectrum lives: shortwave broadcast, the ham bands, HF aviation (including HFDL), DRM and numbers stations. The Ham It Up v1.3 bridges the gap: it upconverts the 0.5-30 MHz HF range to a 125 MHz intermediate frequency that any SDR covering 125 MHz receives natively. SMA connectors throughout, powered from USB or an RTL-SDR bias-tee, in a compact aluminium enclosure, with a 2-year warranty and US/Canadian manufacture from NooElec. Pair it with our RTL-SDR V4 kit or bare R820T2 and the HF world opens up — this is the classic first add-on to our SDR line.
Features
- Receives 0.5-30 MHz HF on any SDR covering 125 MHz
- 125 MHz IF — purpose-built companion for RTL-SDR dongles

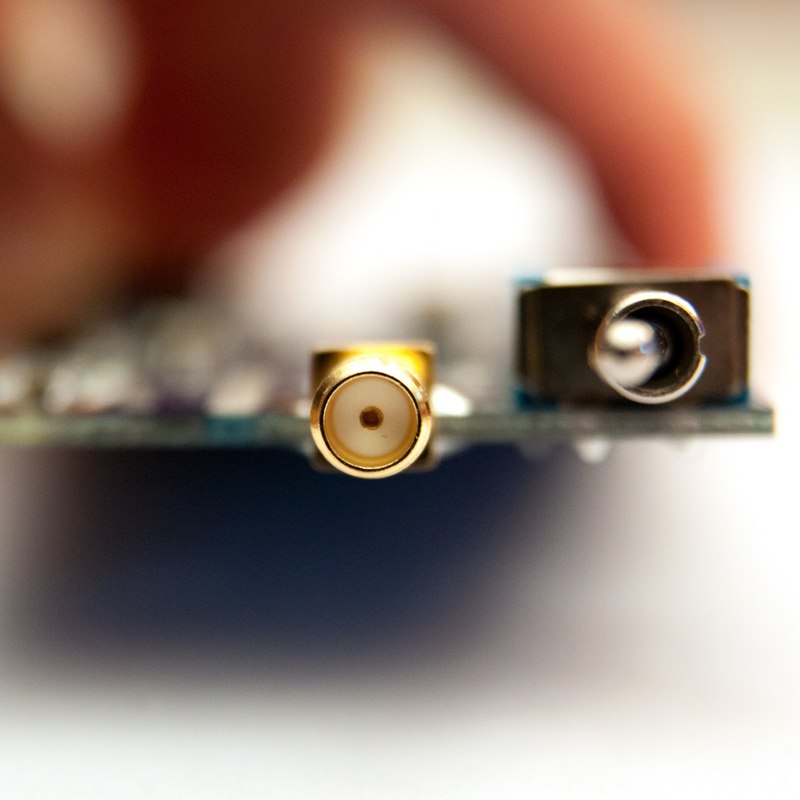

- SMA connectors; USB or bias-tee power options
- Aluminium enclosure, 2-year warranty
- Made in USA/Canada by NooElec
Specs
| Function | HF upconverter (0.5-30 MHz to 125 MHz IF) |
|---|---|
| Connectors | SMA |
| Power | USB or antenna bias-tee |
| Enclosure | aluminium |
| Warranty | 2 years (NooElec) |
In the box
- Ham It Up v1.3 upconverter
- USB power cable
In stock — ships in 7-14 business days
