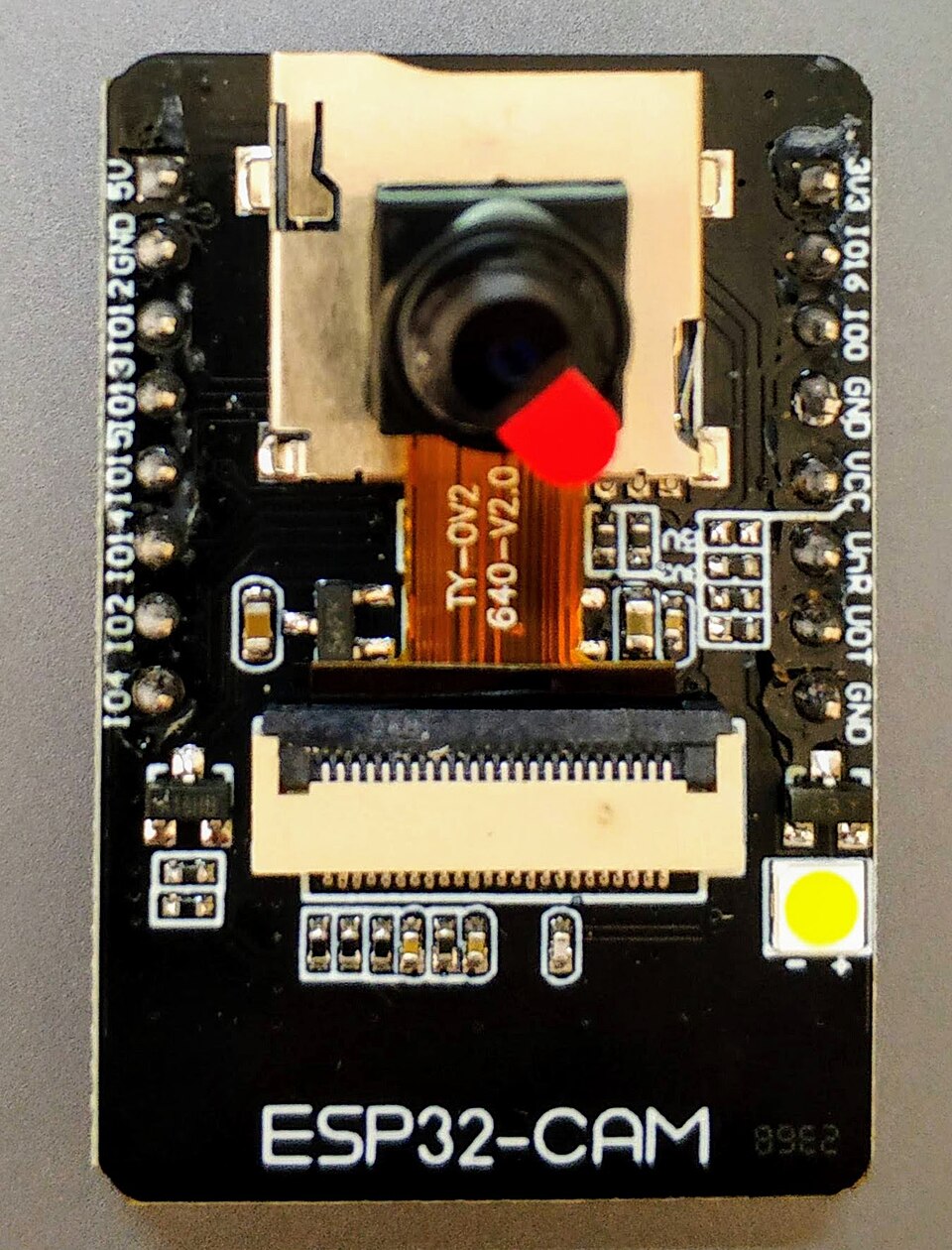

ESP32-CAM Kit (AI-Thinker + OV2640 + FTDI Programmer)
The AI-Thinker ESP32-CAM with OV2640 camera, external antenna and an FTDI programmer — a WiFi camera you can flash the day it arrives.
| Price | A$37.85 A$37.85 · US$24.90 · 24.90 USDC |
|---|---|
| Payment | AUD card/bank · USDC (Base) · Monero |
Compliance: shipped as general-purpose electronics; radio/EMC regulatory status documented per SKU (AU/NZ/US/UK/EU).
About this accessory
The ESP32-CAM is the cheapest genuine video-surveillance and computer-vision dev board in the maker world: an ESP32-S module with 4 MB PSRAM driving an OV2640 2-megapixel camera, a microSD slot, a status LED and a flash LED. This kit bundles the three things that make it usable: the board itself with the OV2640 attached, an IPEX external 2.4 GHz antenna so streaming does not fight a detuned PCB trace, and an FTDI USB-to-TTL programmer — the board has no native USB, so the programmer is the difference between flashing in five minutes and losing an evening. Point it at the well-known CameraWebServer example and you have motion-detectable WiFi video streaming to a browser.
Features
- AI-Thinker ESP32-CAM with OV2640 2 MP camera pre-attached
- 4 MB PSRAM — runs the full CameraWebServer and face-detection demos
- FTDI USB-to-TTL programmer included for flashing, 5V/3.3V switchable
- IPEX external 2.4 GHz antenna for reliable WiFi streaming
- microSD slot saves photos and video locally without a host
Specs
| MCU | ESP32-S module (WiFi + BLE, pre-certified module) |
|---|---|
| Camera | OV2640, 2 MP, JPEG output |
| Storage | microSD card slot |
| Compliance | pre-certified RF module (FCC/CE module grant); RCM/EESS compliance folder maintained for AU/NZ sale |
In the box
- ESP32-CAM board with OV2640 camera
- FTDI USB-to-TTL programmer
- IPEX 2.4 GHz antenna
- Jumper wire set for flash-mode wiring
